PU & Lamination Adhesive for Metal
Two metal-adhesive systems from one manufacturer — a PVC / PET film-to-metal lamination adhesive for vinyl-coated steel and aluminum panels, and a structural 2K polyurethane for metal-to-metal, metal-to-foam and metal-to-composite bonding.
The right adhesive for every metal job
PUGLUE supplies both the adhesive that laminates colorful PVC / PET decorative film onto cold-rolled steel, aluminum and galvanized sheet — for PVC-coated steel doors, aluminum ceilings and appliance housings — and the structural 2K polyurethane that bonds metal to metal, foam and composite at 7–8 MPa for sandwich panels, fire doors and transport. Manufacturer-direct, with TDS and line support for both.
Two Metal Adhesive Systems
Choose by your process — decorative film lamination, or structural metal bonding.
PVC / PET Lamination Adhesive

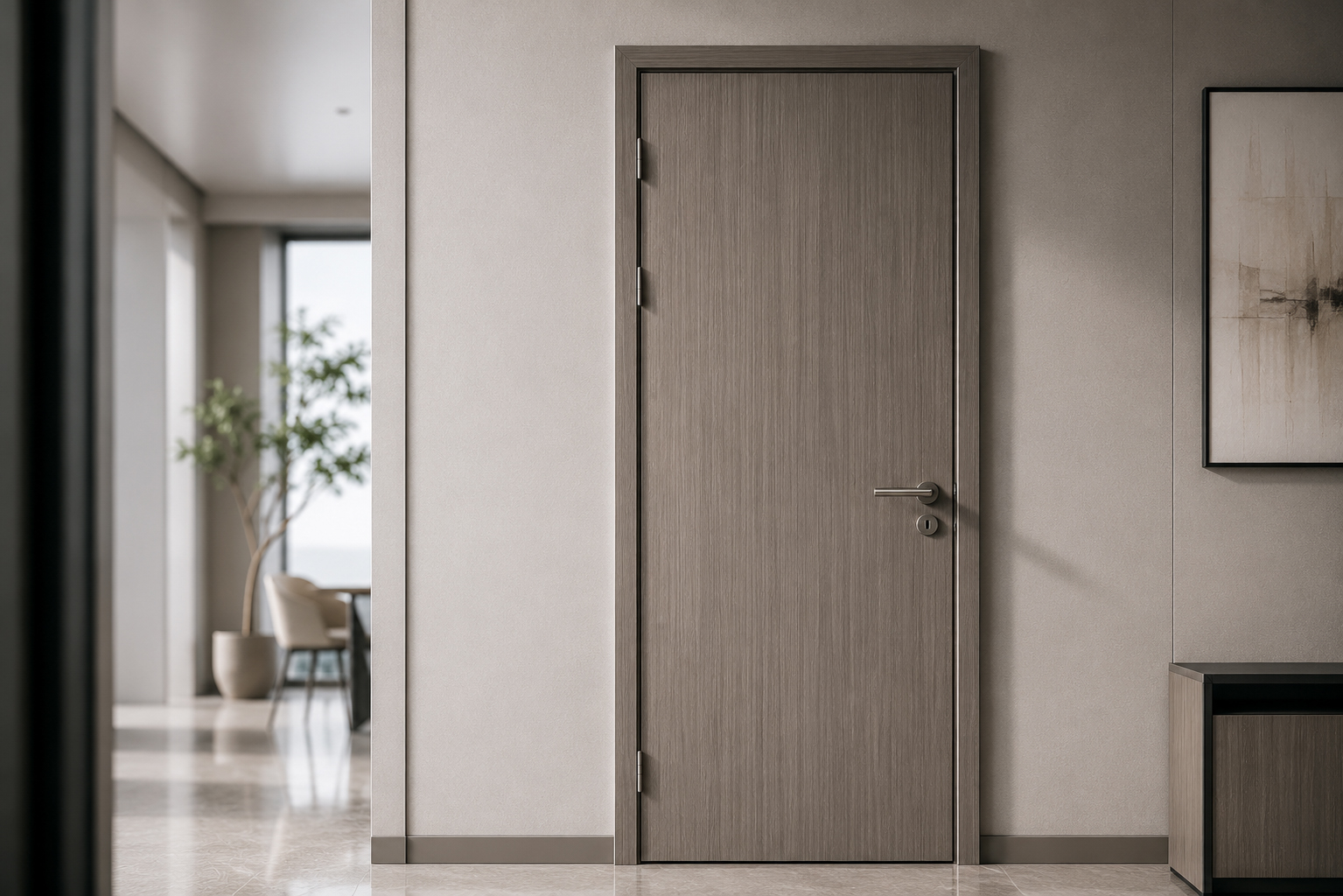

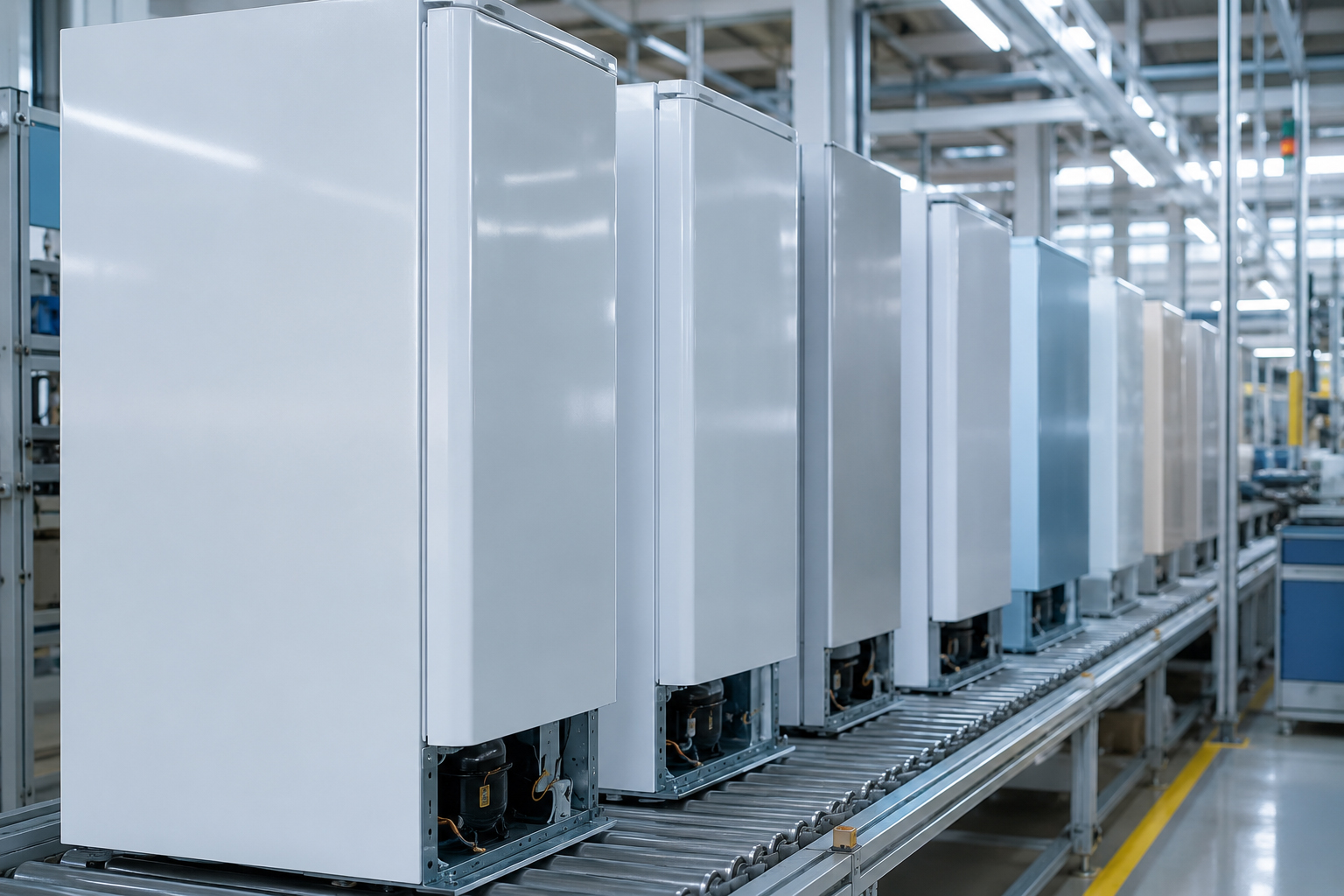

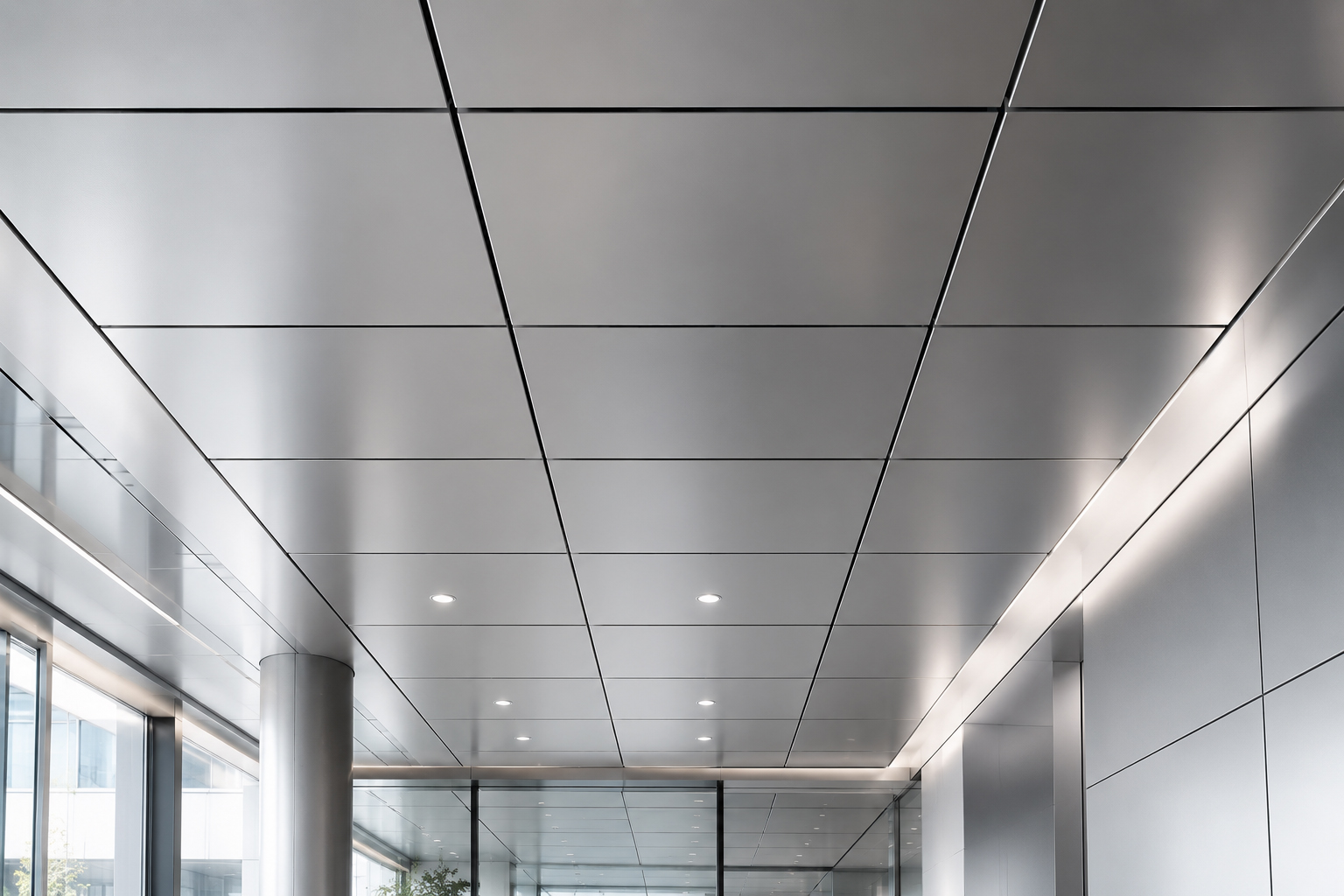

Single-component, solvent-based adhesive that bonds colored PVC / PET decorative film to cold-rolled steel, aluminum and galvanized sheet on an oven lamination line — producing vinyl-coated “laminated steel” for doors, ceilings and appliance housings. High peel strength, deep-draw formable and corrosion-resistant.
Structural 2K PU Adhesive

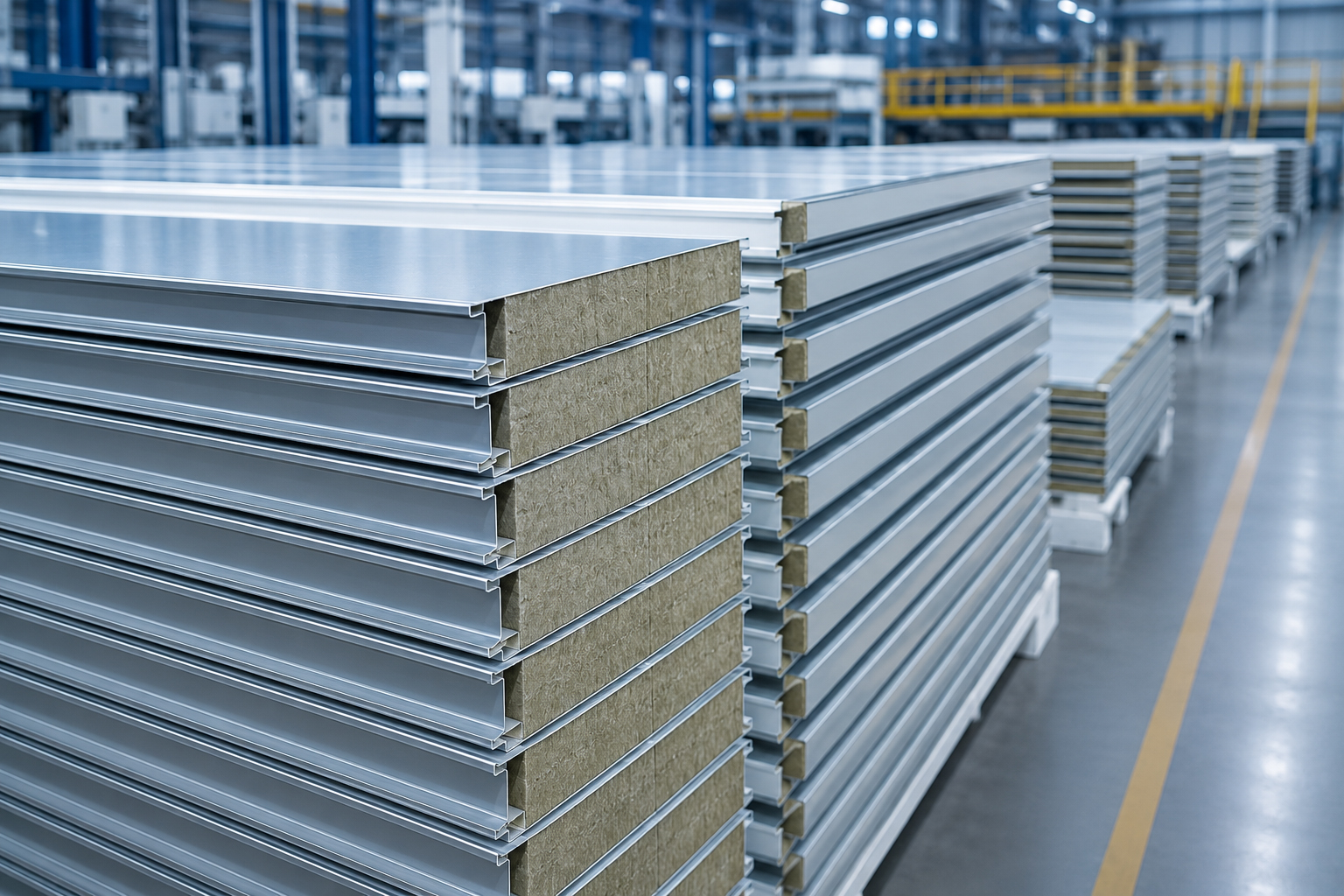

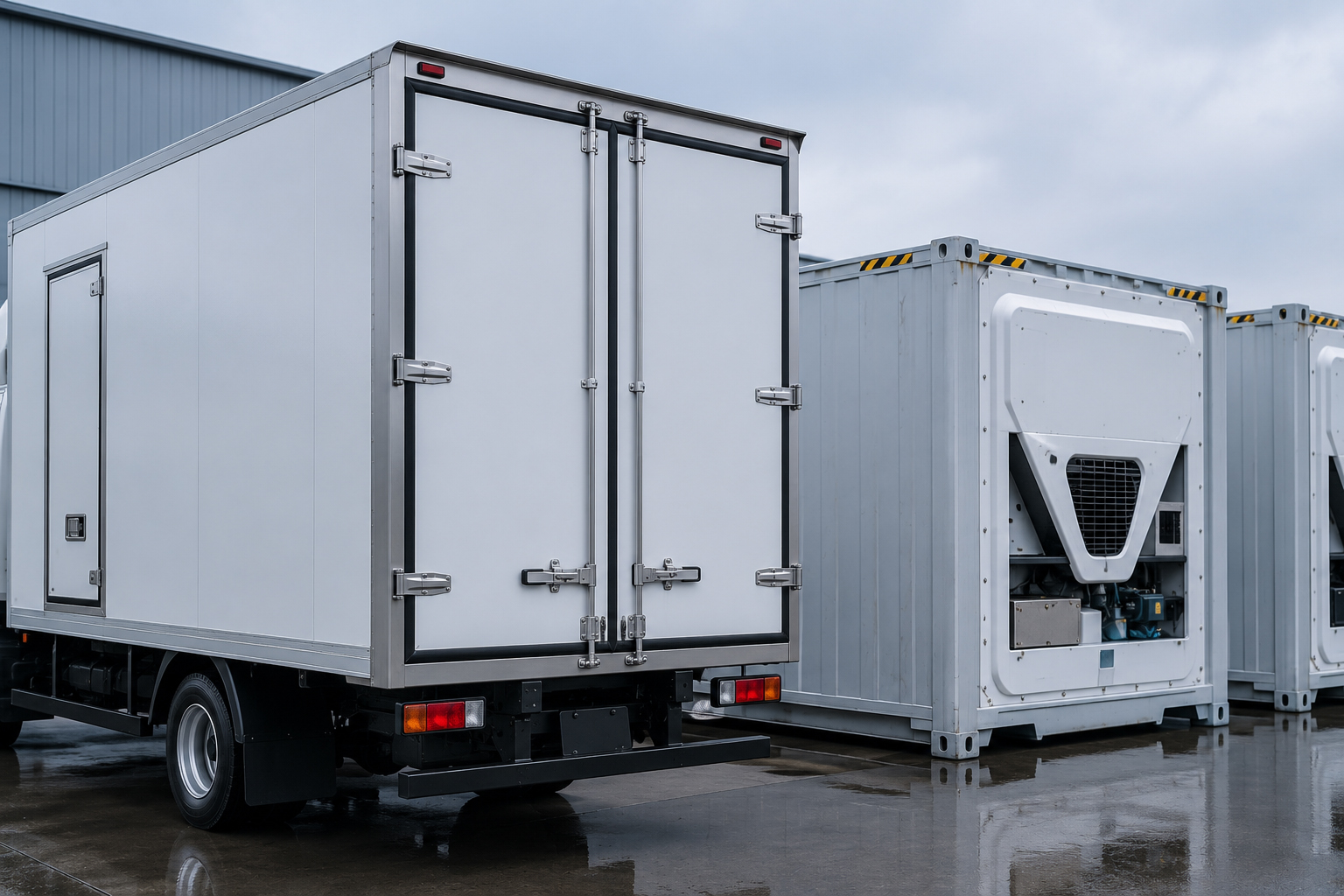

Two-component, solvent-free polyurethane for metal-to-metal, metal-to-foam and metal-to-composite bonding — 7–8 MPa tensile shear, plasticizer-free and vibration-fatigue resistant. For sandwich panels, fire doors, truck / container and marine builds.
Metal Adhesive Types — and Which to Choose
Match the chemistry to your metal process and substrate.
| Adhesive type | Components | Best for | Notes |
|---|---|---|---|
| PVC / PET film lamination | 1K solvent-based | Vinyl-coated steel & aluminum panels | Oven-line lamination; >50 N peel, deep-draw formable, corrosion-resistant. PUGLUE core product. |
| Structural 2K PU | A + B, solvent-free | Metal-to-metal / foam / composite | 7–8 MPa shear, plasticizer-free, vibration-resistant, not foaming. |
| 1K moisture-cure PU (MPU-20) | Single-component | Metal skins to mineral / foam cores | Fire-rated grade for steel doors and panels. |
| Hot-melt / contact | 1K | Trim & quick tack | Lower heat / corrosion resistance — not for structural or formable parts. |
Where PUGLUE Metal Adhesive Is Used
From vinyl-laminated steel doors to structural sandwich panels, across construction, appliance and transport sectors.
Lamination Performance
Tested properties of the PVC / PET-to-metal lamination adhesive.
High peel strength
PVC film-to-metal 180° peel strength >50 N (GB 2790-81) — film stays bonded through service.
Deep-draw formable
Erichsen deep-draw ≥5 mm — laminated sheet can be stamped and formed without delamination.
Corrosion-resistant
No abnormality after 120 h salt spray, 120 h 5% HCl and 20 h 1% NaOH immersion.
Fast line speed
Initial set in ≤5 s on the oven line; full bond strength after 24 h.
PVC Lamination Process
Runs on a mechanized lamination line with a heating oven.
Prepare the metal
De-rust, de-grease, clean, phosphate and dry the sheet. Electro-galvanized sheet can be used directly.
Coat the adhesive
Apply evenly at 40–50 g/m². Thin with high-grade butyl acetate if the glue is too viscous.
Oven & laminate
Ramp the sheet through the oven to 150–210°C, then immediately laminate the PVC / PET film on exit.
Cool & finish
Cool with cold water / air, apply a PE protective film, then cut, stamp or deep-draw.
Solvent-based adhesive — keep the workshop ventilated and free of open flame. The process is technical; contact us before a first run.
Technical Parameters
PVC / PET-to-metal lamination adhesive — representative values.
| Property | Value |
|---|---|
| Type | Single-component, solvent-based |
| Appearance | Colorless / light-yellow transparent viscous liquid |
| Viscosity | 120–140 s (Ford cup #4, 25°C) |
| Solid content | 20–30% |
| pH | 6–7 |
| Initial set | ≤5 s (full strength after 24 h) |
| Coating weight | 40–50 g/m² |
| Lamination temperature | 150–210°C (substrate) |
| 180° peel (film–metal) | >50 N (GB 2790-81) |
| Deep-draw (Erichsen) | ≥5 mm |
| Corrosion resistance | Salt spray 120 h / 5% HCl 120 h / 1% NaOH 20 h — no abnormality |
| Packaging | 200 kg galvanized drum |
| Shelf life | 6 months (sealed, cool) |
Download PVC-Lamination TDS (PDF)
Structural 2K PU (metal-to-metal / foam) is a separate solvent-free system — 7–8 MPa shear, not foaming. Request its TDS separately.
Equipment & Line Compatibility
PVC lamination needs a mechanized coating-and-oven line; structural PU runs on standard metering / spreading equipment.
Lamination line
- Coating roller / applicator
- Heating oven (150–210°C)
- Film laminating & cooling station
- Protective-film & slitting / stamping
Structural PU application
- 2K meter-mix-dispense
- Roller / bead / spray
- Press or clamp fixturing
- Single- or double-side coating
Line requirements
- Metal cleaned / phosphated / dried
- Coverage matched to substrate
- Ventilation for solvent grade
- Accurate A:B metering for 2K PU
A Manufacturer You Can Build On
A dedicated polyurethane and lamination adhesive manufacturer — not a trading reseller — supplying metal-product plants worldwide since 2010.
Consistent, tested quality
In-house QC on every lot so viscosity, peel and cure stay repeatable.
Full technical support
TDS, free trial samples and engineer support to match your line speed, oven temperature and substrate.
OEM & private label
Manufacturer-direct pricing, your branding and stable supply — no middleman.
Packaging, Samples & OEM Supply
Manufacturer-direct supply built around metal-plant procurement.
Packaging
200 kg galvanized drum for lamination adhesive; pail / drum / IBC for structural PU.
Free trial sample
Trial samples with full TDS so you can validate peel and line speed before committing.
OEM / private label
Your brand, your spec — manufacturer-friendly MOQ and repeatable batches.
Global export
Export-ready documentation and logistics support.
Frequently Asked Questions
Metal bonding & PVC-lamination adhesive — technical answers for metal fabricators.
What adhesive laminates PVC film onto steel or aluminum?
A single-component, solvent-based lamination adhesive. It bonds colored PVC / PET decorative film to cold-rolled steel, aluminum and galvanized sheet on an oven line, producing vinyl-coated “laminated steel” for doors, ceilings and appliance housings.
How strong is the film-to-metal bond?
180° peel strength is >50 N (GB 2790-81), and the laminate withstands Erichsen deep-draw of ≥5 mm so it can be stamped and formed without the film lifting.
Is the laminate corrosion-resistant?
Yes — it shows no abnormality after 120 h salt-spray, 120 h 5% hydrochloric acid and 20 h 1% sodium-hydroxide immersion.
What coating weight and oven temperature are used?
Apply 40–50 g/m² evenly; ramp the sheet through the oven to a substrate temperature of 150–210°C, then laminate the film immediately on exit and cool.
How do I prepare the metal surface?
De-rust, de-grease, clean, phosphate and dry the sheet. Electro-galvanized sheet can be laminated directly. If the glue is too viscous, thin with high-grade butyl acetate.
Do I need special equipment?
Yes — PVC lamination requires a mechanized coating-and-oven line with a film laminating and cooling station. The process is technical; we recommend contacting us before a first run.
Do you also supply structural metal-to-metal adhesive?
Yes. Our 2K solvent-free polyurethane bonds metal to metal, foam and composite at 7–8 MPa tensile shear, plasticizer-free and vibration-fatigue resistant — for sandwich panels, fire doors, trucks and shipbuilding.
What is the shelf life and packaging?
The lamination adhesive stores 6 months sealed in a cool place and ships in 200 kg galvanized drums.
Is the lamination adhesive flammable?
It is solvent-based with a mild odor — keep the workshop well ventilated and free of open flame, and follow standard solvent-handling safety.
Do you offer samples, TDS, MOQ and OEM?
Yes. We provide a full TDS, free samples, and OEM / private-label supply with manufacturer-friendly MOQs. Contact us for a quote matched to your line and substrate.
