PU Adhesive for Gypsum Board
Single-component, moisture-cure polyurethane adhesive (MPU-20) for bonding paper-faced gypsum board to steel and fireproof decorative board — engineered for fire doors, lightweight partitions, cleanroom and cold-storage panels with a strong, fire-rated, formaldehyde-free bond.
A fire-rated adhesive for gypsum-board lamination
PUGLUE MPU-20 is a single-component, moisture-cure polyurethane that bonds paper-faced gypsum board to galvanized / color steel and fireproof decorative board with ≥15 MPa metal-to-metal strength — on non-metal substrates the board fails before the bond. It is surface-dry in under 1 hour, cures in 4–8 h, and carries GB 8624 fire, low-flame-spread, toluene-free and formaldehyde-free certification. After curing the glue line is insoluble and non-melting.
Bonds Gypsum Board to Every Facing
One polyurethane adhesive bonds paper-faced gypsum and fireproof board to steel and metal facings — the core of fire doors and lightweight building panels.
Board side
- Paper-faced gypsum board

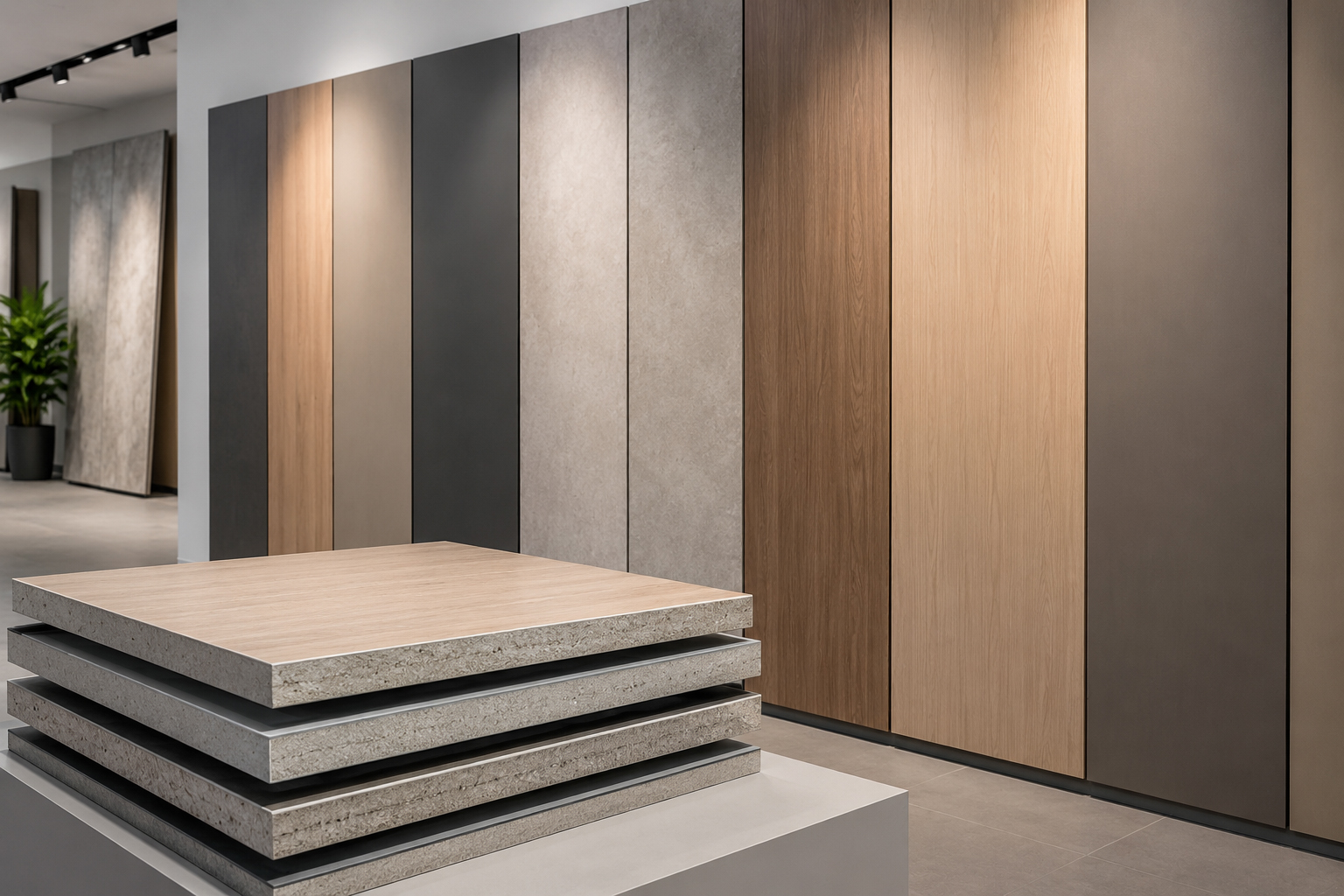

- Fireproof decorative board
- MgO & cement board
- Rock wool & insulation cores
Facing side
- Galvanized & color steel
- Steel plate & sheet
- Aluminum sheet
- Metal door skins
End builds

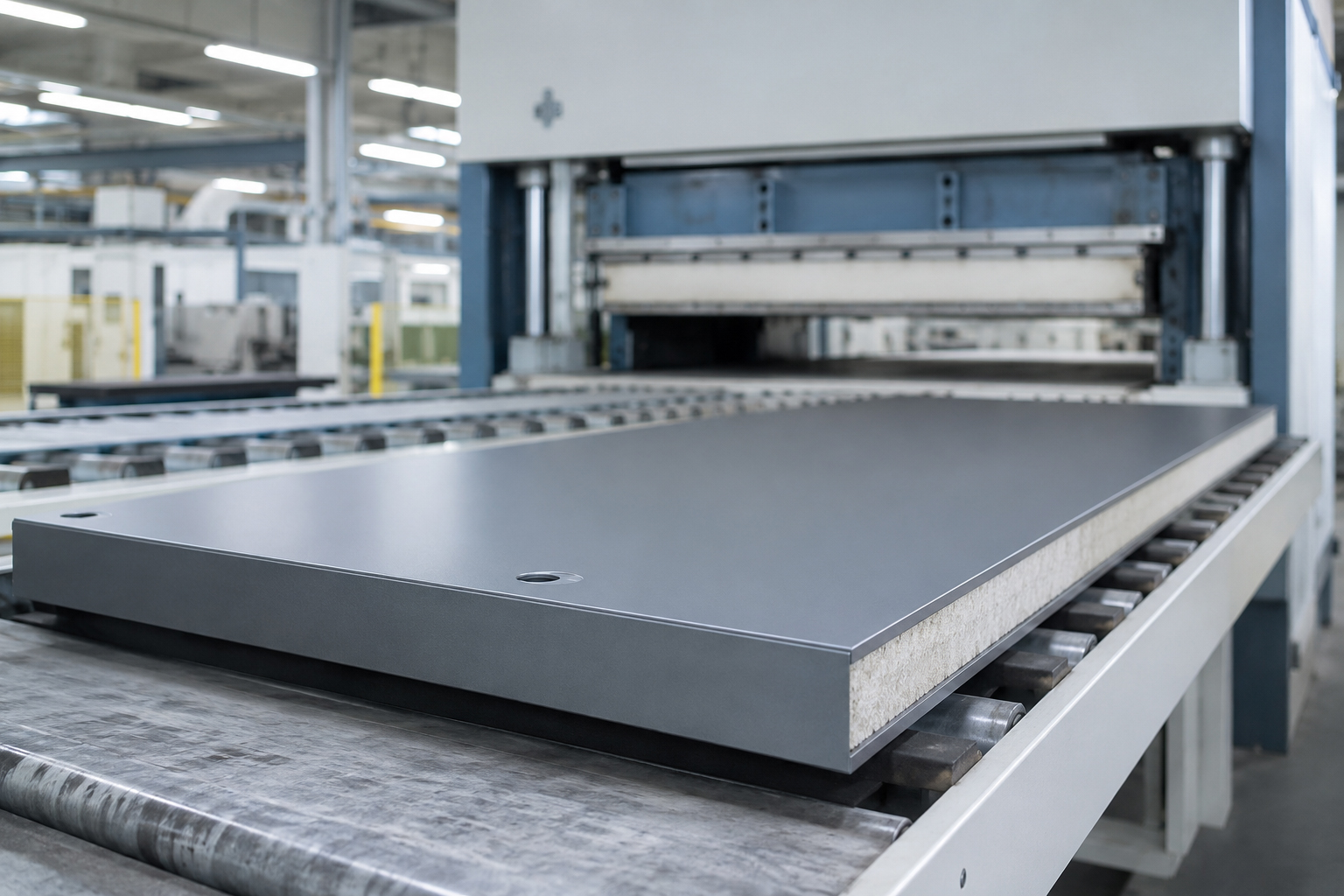

- Fireproof & steel doors

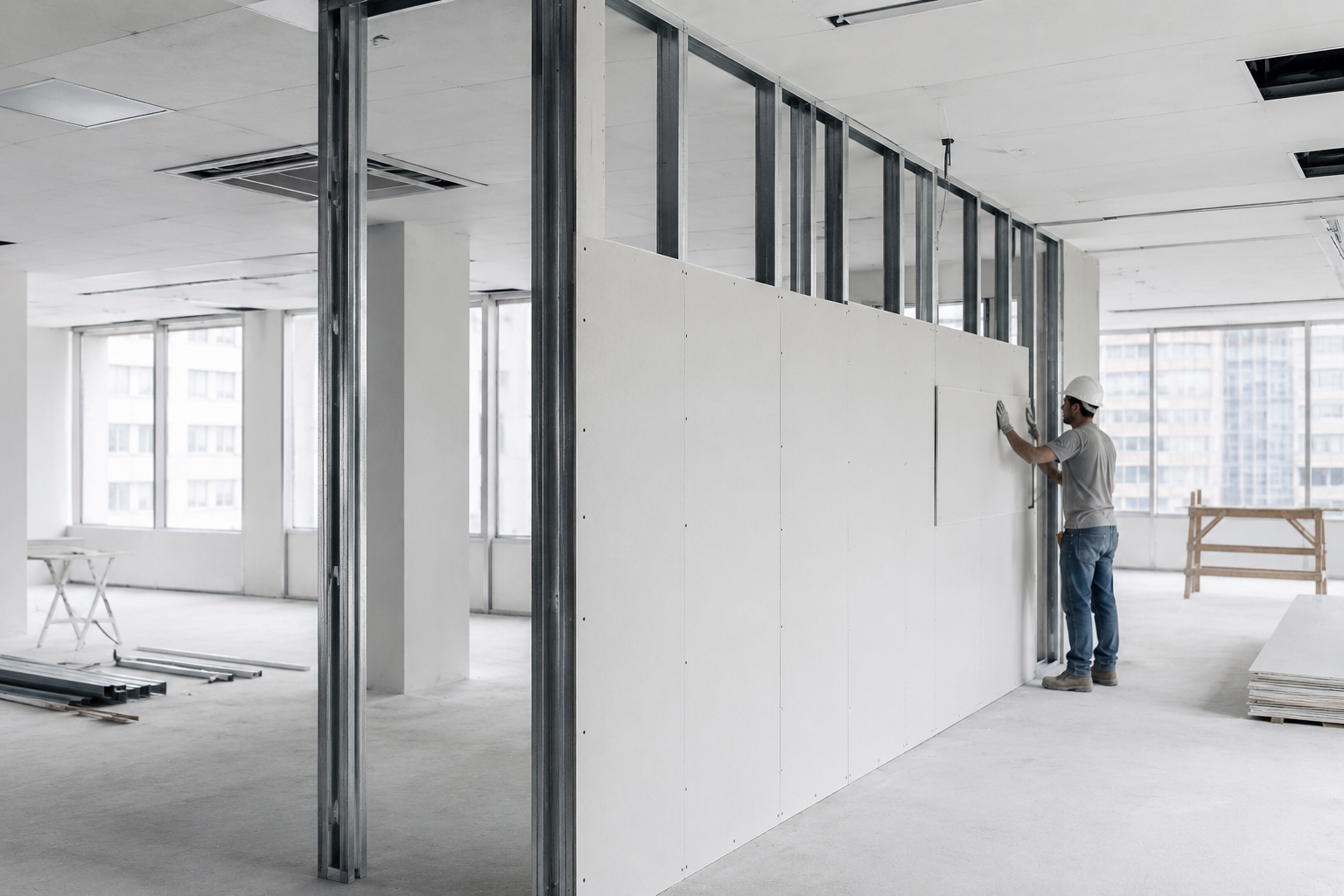

- Lightweight partition walls
- Composite wall & ceiling panels

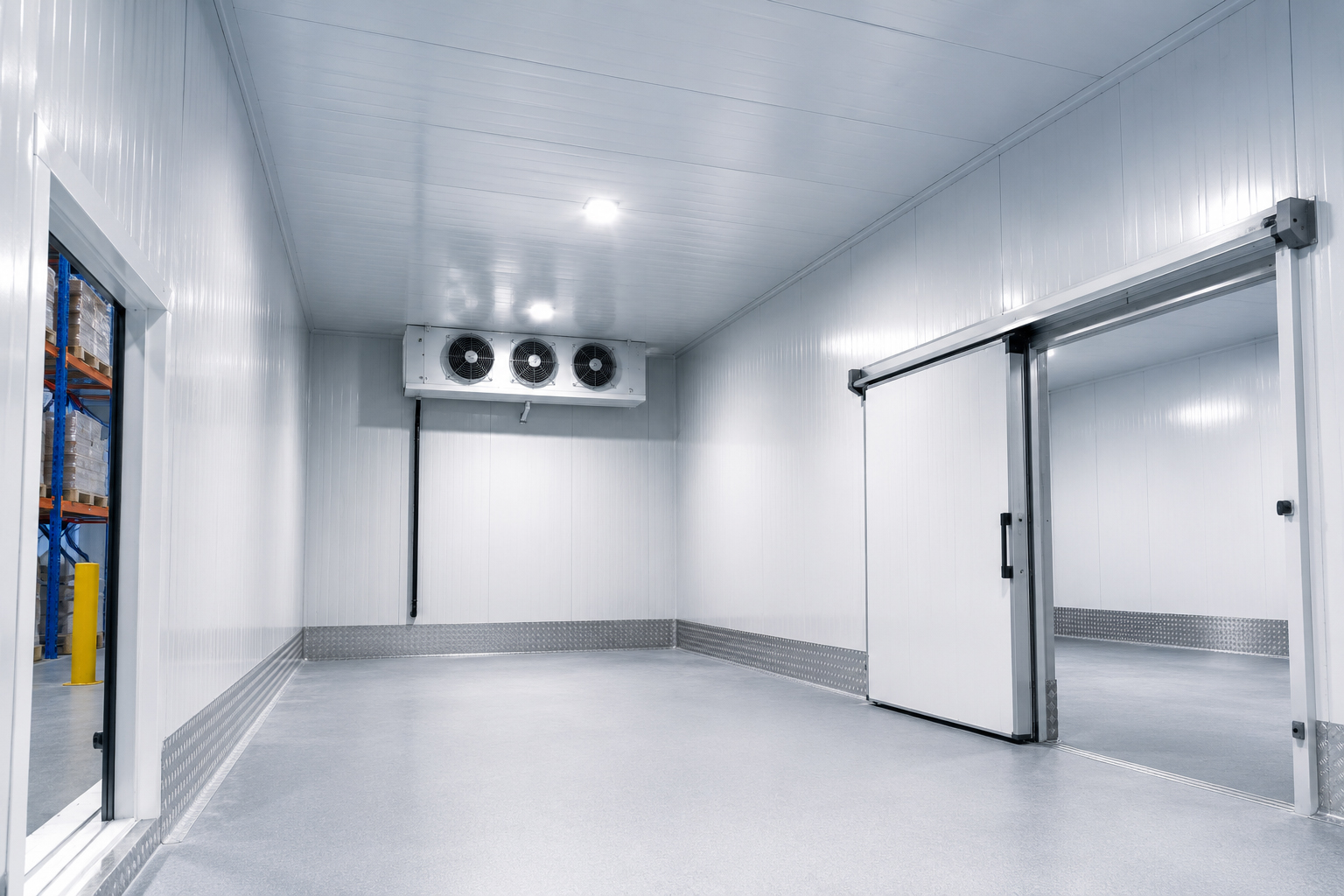

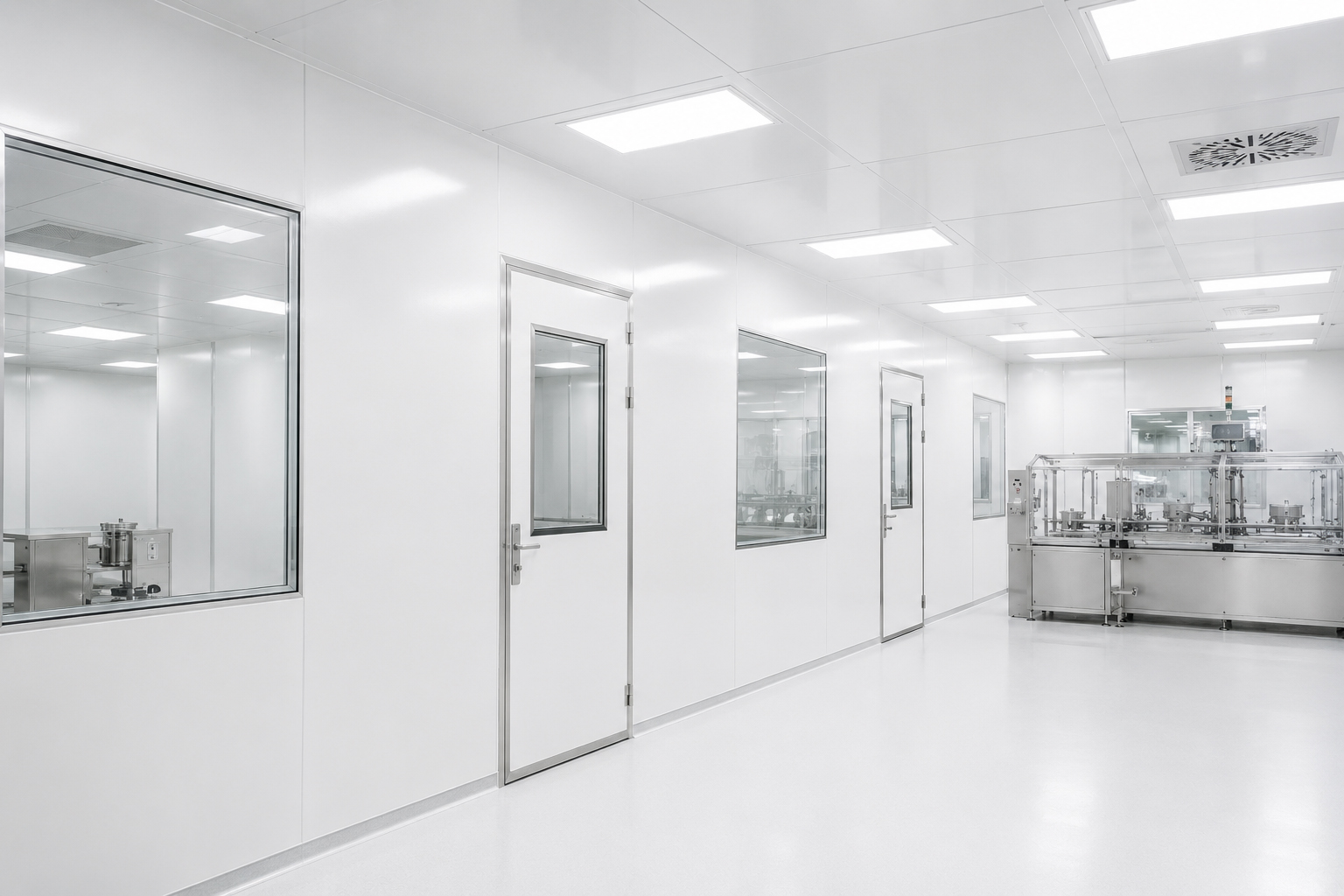

- Cold-storage & cleanroom panels
Types of Gypsum Board Adhesive — and Which to Choose
Gypsum board is laminated with several adhesive chemistries. PUGLUE’s single-component MPU-20 polyurethane is the choice for fire-rated, structural board-to-steel bonds.
| Adhesive type | Components | Best for | Notes |
|---|---|---|---|
| 1K PU (MPU-20) | Single-component | Fire doors, board-to-steel lamination | Moisture-cure, ≥15 MPa, GB 8624 fire-rated, formaldehyde-free. PUGLUE core product. |
| Two-component PU | A + B | High-volume structural panels | Chemical cure, humidity-independent; needs metering. Available on request. |
| Water-based / PVAc | 1K | Light interior drywall | Low cost but weak water and heat resistance; not fire-rated or structural. |
| Cement / gypsum mortar | Powder | Board-to-masonry dot bonding | For sticking board to walls, not board-to-steel panel lamination. |
For fire-door and board-to-steel panels, plants run the single-component MPU-20 — tell us your board and facing and we’ll confirm the grade.
Where PUGLUE Gypsum Board Adhesive Is Used
From fire-door lines to cleanroom panel plants, MPU-20 bonds gypsum and fireproof board to steel across construction and industrial sectors.
Engineered Performance
Strong, fire-rated and clean — the profile fire-door and panel lines require.
High bond ≥15 MPa
Metal-to-metal tensile strength ≥15 MPa; on board substrates the board fails before the glue line.
Fire-rated
GB 8624-2006 type-tested, low-flame-spread report and smoke toxicity grade ZA1 (GB/T 20285-2006).
Toluene & formaldehyde-free
Certified free of added toluene and formaldehyde — suited to indoor air and green building.
Insoluble & non-melting
Once moisture-cured the glue line is insoluble and non-melting, with high and low-temperature resistance.
How to Apply MPU-20
A simple single-component workflow — no mixing, cured by ambient moisture.
Clean the surface
Remove oil and dust from both surfaces to be bonded.

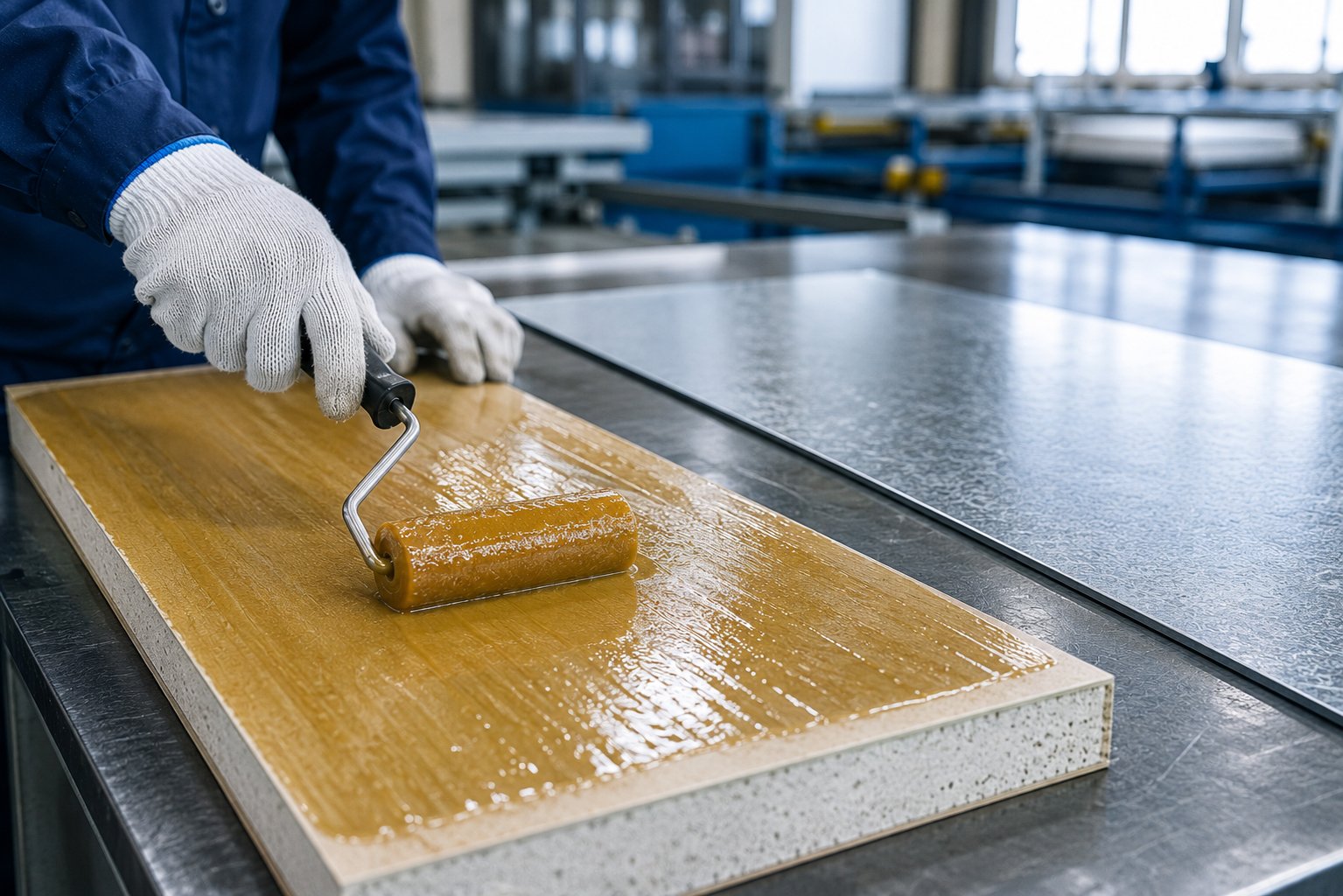

Apply single-side
Spread evenly with a toothed scraper, or single-side coat with a roll coater, at 120–160 g/m².
Composite & press
Lay up the boards and press. To speed cure, spray a little water mist on the glue line first.
Cure
Surface-dry in ≤1 h, full cure in 4–8 h (adjustable). Clean tools with ethyl acetate.
Technical Parameters
Single-component MPU-20 polyurethane — datasheet values, customizable to your line.
| Property | Value |
|---|---|
| Type | MPU-20 single-component polyurethane (moisture-cure) |
| Appearance | Dark brown / tan viscous liquid |
| Density | 1.15 ± 0.05 g/cm³ |
| Viscosity | 8000–9000 mPa·s (adjustable) |
| Solid content | 94% |
| Coating weight | 120–160 g/m² |
| Surface-dry time | ≤1 h |
| Cure time | 4–8 h (adjustable) |
| Bond strength | Metal–metal ≥15 MPa; metal–non-metal: non-metal fails first |
| Dilution / cleanup | Ethyl acetate |
| Packaging | 25 kg plastic drum / 200 kg iron drum |
Curing principle: single-component, cured by moisture in the air and on the bonded surface. Request the full TDS for your panel.
Coverage, Cure & Storage
Practical figures to plan your lamination run.
Coverage
Single glue line; tune to board porosity. Too little weakens the bond.
Surface dry
Handleable quickly; a light water mist on the glue line speeds cure further.
Cure time
Full cure, adjustable to your line speed and press cycle.
Packaging
25 kg plastic drum and 200 kg iron drum. Keep sealed against moisture.
Certifications & Compliance
MPU-20 is type-tested to Chinese national fire and indoor-air standards — documentation available for export.
Fire performance
GB 8624-2006 type test (nine indicators meet the national standard) and a low-flame-spread test report.
Smoke toxicity
Smoke toxicity grade ZA1 to GB/T 20285-2006 — suitable for fire-safe building interiors.
Indoor-air safety
National coating-quality reports certify no added toluene and no added formaldehyde.
Cold-storage tested
Tested by the Ministry of Agriculture cold-storage & refrigeration equipment quality centre.
Structural strength
Metal-to-metal bond ≥15 MPa; on board substrates the board fails before the bond.
Export documentation
TDS, certificates and test reports supplied for overseas door and panel plants.
A Manufacturer You Can Build On
A dedicated polyurethane adhesive manufacturer — not a trading reseller — supplying door and panel plants worldwide since 2010.
Consistent, tested quality
In-house QC on every lot so viscosity, cure speed and bond strength stay repeatable.
Full technical support
TDS, certificates, free trial samples and engineer support to match your board, facing and line speed.
OEM & private label
Manufacturer-direct pricing, your branding and stable supply for continuous production — no middleman.
Packaging, Samples & OEM Supply
Manufacturer-direct supply built around door- and panel-plant procurement.
Packaging
25 kg plastic drum and 200 kg iron drum — trial quantities on request.
Free trial sample
Trial samples with full TDS so you can validate bond and cure before committing.
OEM / private label
Your brand, your spec — manufacturer-friendly MOQ and repeatable batches.
Global export
Export-ready documentation, certificates and logistics support.
Frequently Asked Questions
Gypsum board adhesive (MPU-20) — technical answers for door and panel manufacturers.
What adhesive bonds paper-faced gypsum board to steel?
A single-component moisture-cure polyurethane — PUGLUE MPU-20. It bonds paper-faced gypsum board and fireproof decorative board to galvanized / color steel and steel plate, with ≥15 MPa metal-to-metal strength and a fire-rated, formaldehyde-free glue line.
Is the adhesive fire-rated?
Yes. MPU-20 is type-tested to GB 8624-2006, carries a low-flame-spread report, and reaches smoke toxicity grade ZA1 under GB/T 20285-2006 — suitable for fire doors and fire-safe panels.
Is it formaldehyde-free and toluene-free?
Yes — national coating-quality reports certify no added formaldehyde and no added toluene, so it suits indoor-air and green-building requirements.
What does it bond besides gypsum board?

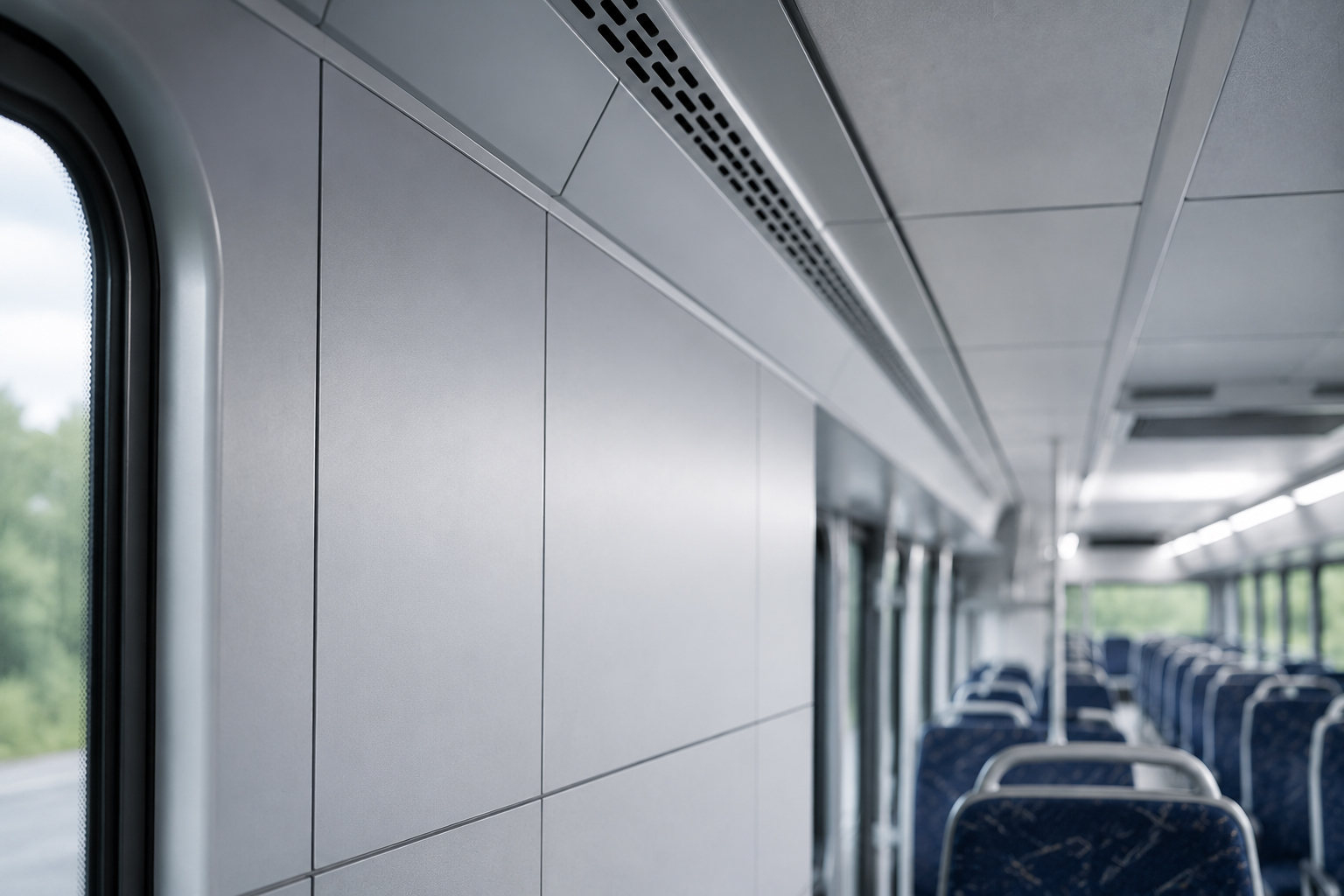

Fireproof decorative board, MgO and cement board, rock wool and insulation cores — to galvanized / color steel, steel plate and aluminum. It is widely used in door, lightweight-building, refrigeration and vehicle / ship manufacturing.
How much adhesive do I need (coverage)?
Coating weight is 120–160 g/m² on a single side, tuned to board porosity. Too little weakens the bond; too much extends cure time.
How long is the surface-dry and full cure time?
Surface-dry in ≤1 hour and full cure in 4–8 hours (adjustable). A light water mist on the glue line accelerates the moisture cure.
How is it applied?
Clean off oil and dust, spread the glue single-side with a toothed scraper or roll coater, composite the boards and press. Tools clean up with ethyl acetate.
How strong is the bond?
Metal-to-metal tensile strength is ≥15 MPa. On non-metal substrates such as gypsum or fireproof board, the board itself fails before the glue line.
What is the shelf life and how should it be stored?
Store in an ordinary indoor warehouse. Because it is moisture-cure, reseal drums after use and keep them away from humidity; nitrogen-blanket for long storage.
Do you offer samples, TDS, certificates, MOQ and OEM?
Yes. We provide a full TDS, fire and indoor-air certificates, free samples, and OEM / private-label supply with manufacturer-friendly MOQs. Contact us for a quote matched to your panel.
Related Adhesives & Guides
Matched polyurethane adhesives for every door and panel build.
Get a gypsum board adhesive matched to your line
Send us your board, facing and panel type — we’ll confirm the right MPU-20 grade and ship a free trial sample with full TDS and certificates.
