A fully automatic two-component PU gluing & dispensing machine with a gantry multi-axis head and a self-mixing, heating, metering glue-supply system — programs spray path, film thickness and cycles for hands-free sandwich & composite panel lamination. A:B & flow accuracy ±5%, PLC control.
Automatic Gantry · 2K PU Gluing Line

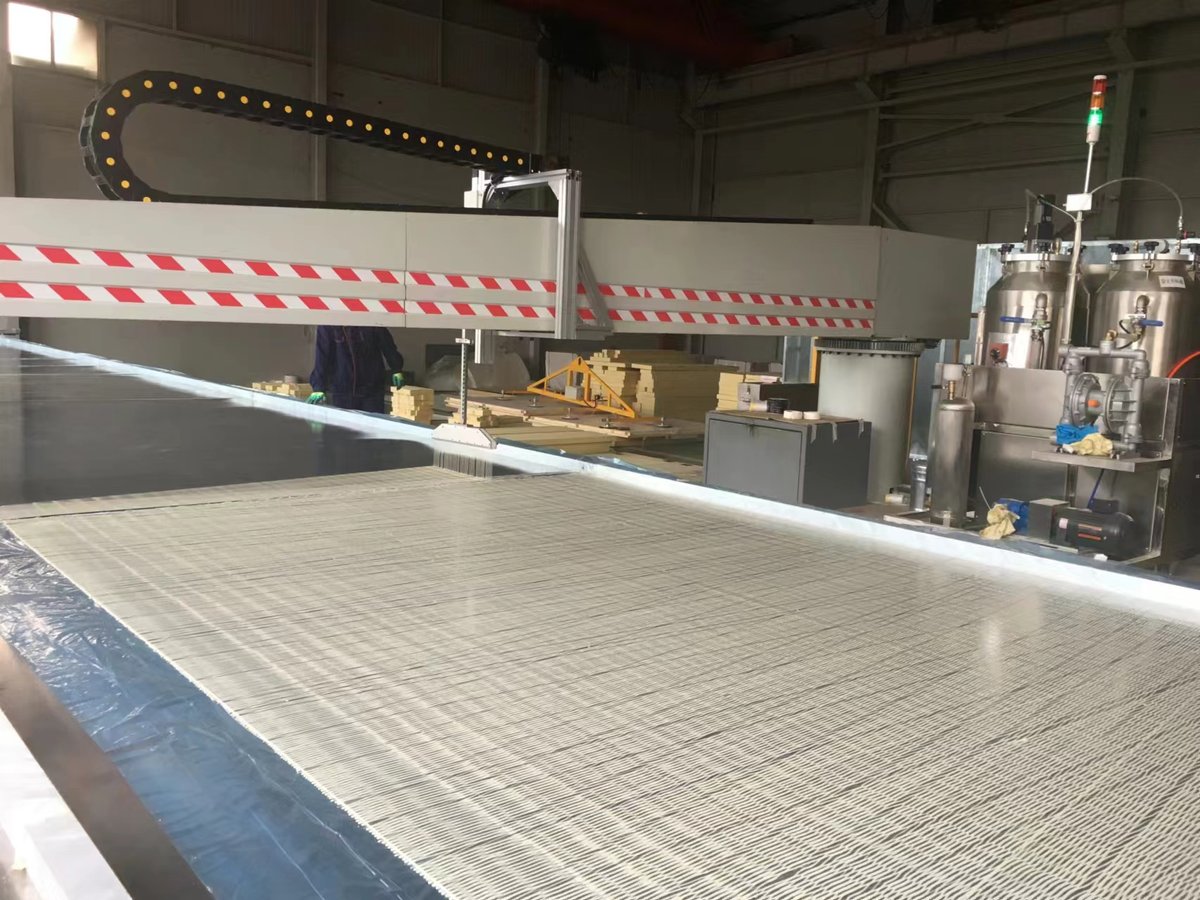

A fully automatic two-component PU gluing & dispensing machine for panel production lines. The glue-supply system mixes, stirs, proportions, heats, meters and self-cleans the A/B adhesive automatically, while a gantry multi-axis head programs the spray path, film thickness, glue length and cycle count, then resets and repositions on its own. Built for high-volume sandwich and composite panel lamination — a repeatable, hands-free glue line.

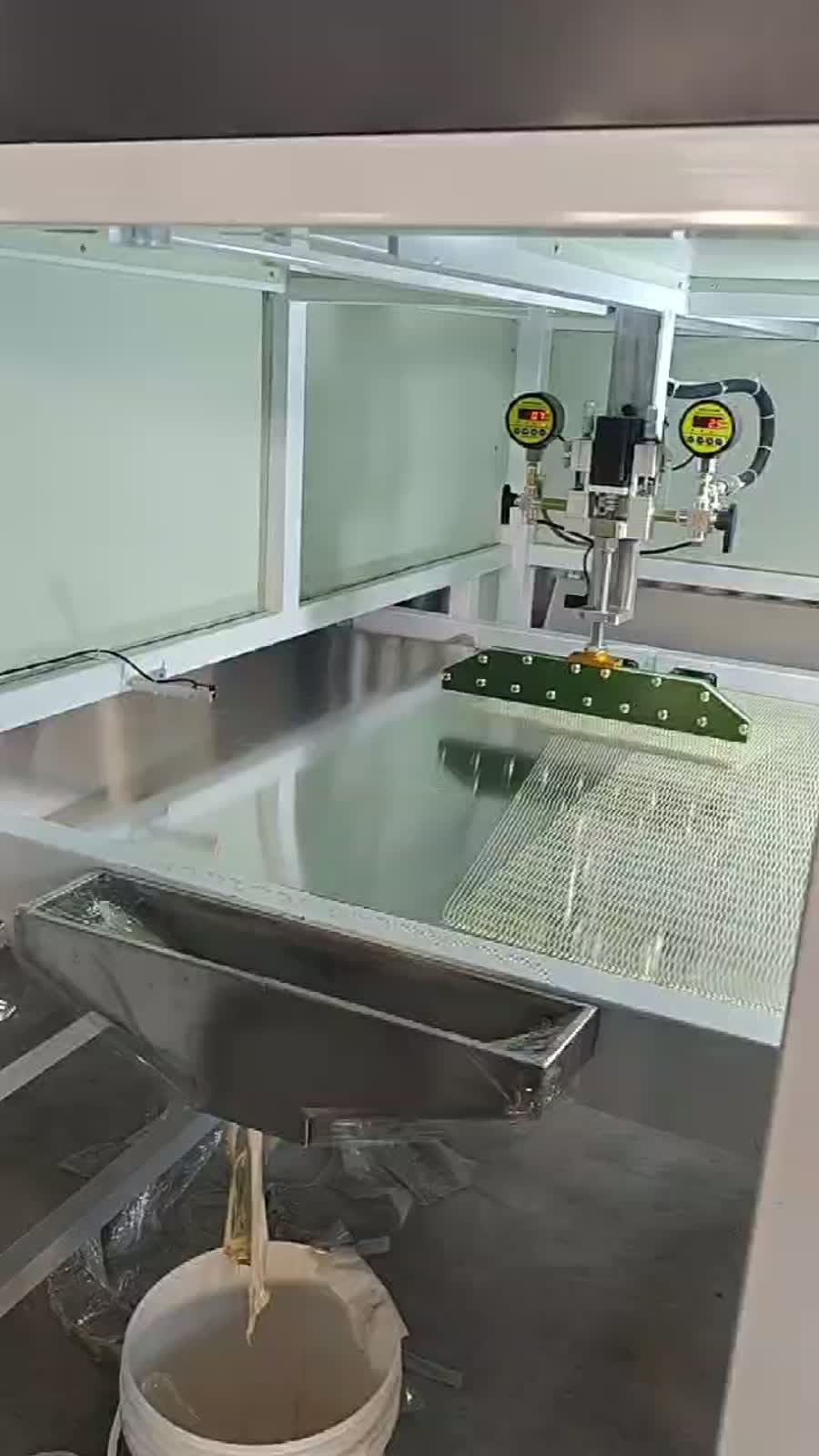

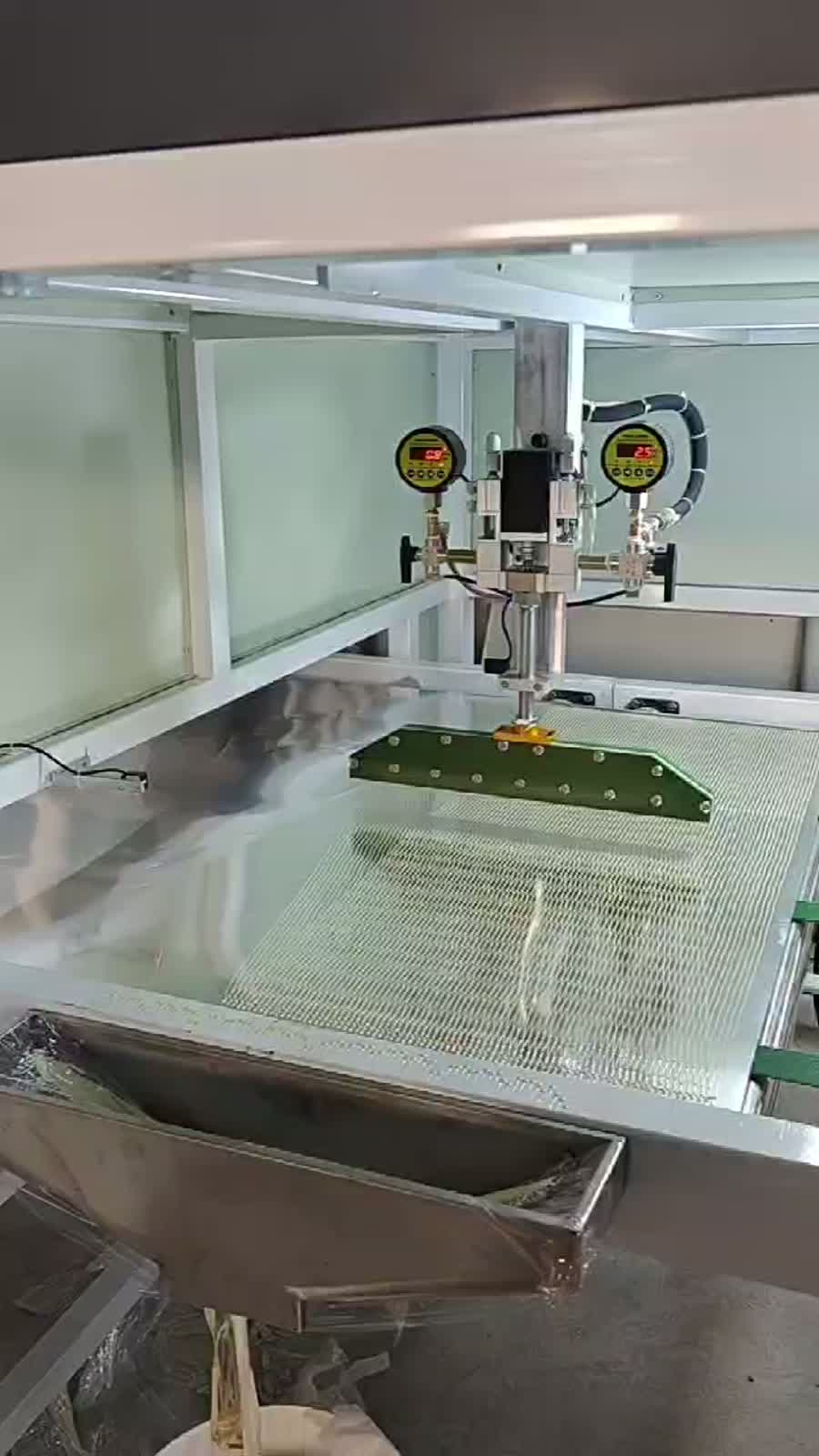

The gantry head runs a programmed path across the full panel — consistent film, no operator fatigue, line-rate throughput.
A/B is mixed, proportioned, heated, metered and self-cleaned automatically — A:B and flow accuracy ±5% on every panel.
Set spray position, glue thickness, glue length and cycle times on the PLC; the head auto-resets and repositions between panels.
Automates the glue step in sandwich and composite panel production — bonding metal or FRP skins to PU / XPS / EPS / rock-wool cores at line rate.
| Type | Fully automatic two-component PU gluing & dispensing machine, gantry multi-axis |
| A : B mixing accuracy | ± 5% (adjustable ratio) |
| Flow accuracy | ± 5% |
| Glue output | Adjustable |
| Equipment power | 5 kW |
| Glue supply | Automatic mixing, stirring, proportioning, heating, metering & self-cleaning |
| Gantry head | Programmable spray position, film thickness, glue length & cycle count; auto reset / reposition |
| Control | PLC program control system |
This is the fully automatic gantry line for high-volume panel production. For lower volumes or large one-off panels, see the handheld machines: the two-component PU gluing & dispensing machine for general panel bonding, or the handheld machine for refrigerated-truck & cold-room panels.
PUGLUE is a polyurethane adhesive manufacturer that also supplies the equipment to apply it — line layout, gantry span and output configured to your panel size and throughput, and shipped with your adhesive on one quote. See the OEM & customization overview, or browse all PU gluing & coating machines or contact us for the full spec.
Yes. The glue supply auto-mixes, proportions, heats, meters and self-cleans, and the gantry multi-axis head runs a programmed coating path with auto reset and repositioning — a hands-free glue line.
A:B mixing accuracy and flow accuracy are both ±5%, with an adjustable ratio and adjustable output, all set on the PLC.
Insulated sandwich panels, honeycomb and FRP / composite panels, cold-room / cold-chain panels and large-format boards — metal or FRP skins bonded to foam cores.
Yes — see the handheld two-component PU gluing machine for general panels, or the refrigerated-truck & cold-room model.
