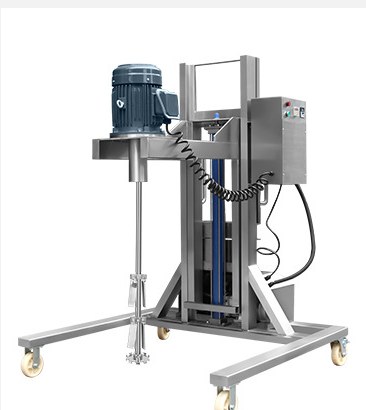

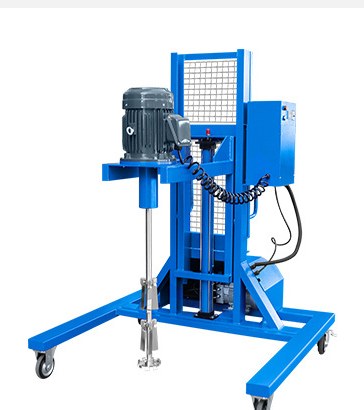

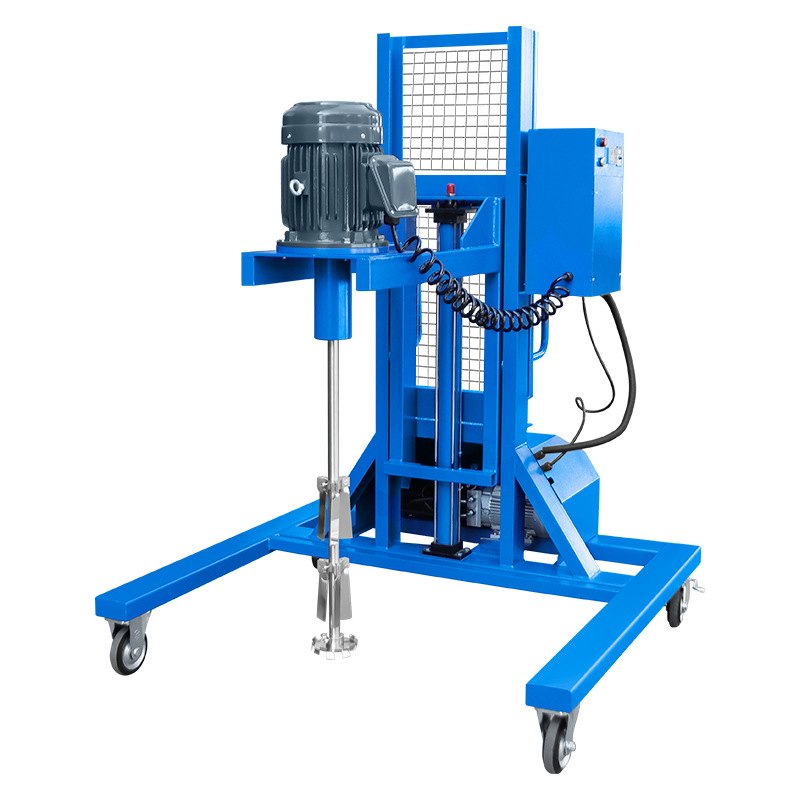

A mobile column-lift electric mixer that homogenises resin, polyol, paint and coatings inside a standard 1000 L IBC tote — no transfer tank. Motorised lifting column, VFD variable speed with timer, and casters to roll between totes. Available in carbon steel or 304 stainless steel, in standard, explosion-proof and anti-corrosion versions.
Mobile IBC / Ton-Drum Mixing
A mobile column-lift electric mixer that homogenises material inside a standard 1000 L IBC tote or ton drum — no transfer, no separate mixing tank. The motorised lifting column raises and lowers the agitator into the tote, the unit rolls between containers on casters, and a VFD drive with timer sets the speed and run time. Available in carbon steel (powder-coated) or 304 stainless steel, in standard, explosion-proof and anti-corrosion versions.
Homogenise resin, polyol, paint or coating straight in the 1000 L IBC — no pumping into a separate tank, no cross-contamination.
The lifting column lowers the agitator into the tote and raises it clear; the frame rolls between totes on casters.
Variable-frequency drive sets the mixing speed to the medium; the timer runs a set batch unattended.
Both handle up to 1000 L per tote. Choose the geared model for thick, high-viscosity material or the high-speed disperser for thinner liquids and pigment dispersion.
Pick an explosion-proof motor and controls for solvent-based and flammable media, or an anti-corrosion / 304 stainless build for aggressive chemistry.
| Type | Mobile column-lift electric IBC / ton-drum mixer |
| Power | 5.5 kW (geared) or 4 kW (high-speed) |
| Voltage / frequency | 380 V / 50 Hz (3-phase) |
| Speed | 0–187 rpm (geared) / 1450 rpm (high-speed), VFD-controlled |
| Max. capacity | 1000 L (one IBC tote) |
| Max. viscosity | 12,000 cps (geared) / 3,000 cps (high-speed) |
| Lift | Motorised lifting column; mobile frame on casters |
| Control | VFD variable speed + mixing timer |
| Material / version | Carbon steel (powder-coated) or 304 stainless; standard / explosion-proof / anti-corrosion |
Re-suspends settled fillers and keeps multi-part chemistry homogeneous before dispensing — one mobile unit serves a row of totes.
PUGLUE is a polyurethane adhesive manufacturer that also supplies the equipment to mix and apply it — matched to your material and shipped with your adhesive order on one quote. Tell us your medium, viscosity and version (standard / explosion-proof / anti-corrosion) and we will spec it. For drum agitators or handheld mixers, see our custom mixing & agitation equipment overview.
Yes. The lifting column lowers the agitator into a standard 1000 L IBC tote and homogenises the contents in place — no transfer to a separate mixing tank.
The geared model runs 0–187 rpm and handles up to 12,000 cps — for thick, high-viscosity media. The high-speed model runs 1450 rpm up to 3,000 cps — for thinner liquids and pigment dispersion.
Yes — standard, explosion-proof and anti-corrosion versions are available, in carbon steel (powder-coated) or 304 stainless steel. Choose explosion-proof for solvent-based or flammable media.
Yes — pneumatic drum / IBC agitators (50 / 100 gallon & multi-cylinder) and handheld double-head electric mixers. See our custom mixing & agitation equipment page.
Yongjia Polyurethane Co., Ltd is a China-based manufacturer of high-performance PU adhesives for SIP panels, sandwich panels, fire doors, honeycomb composites and cold storage. Trusted by industrial bonding teams across 20+ countries.
